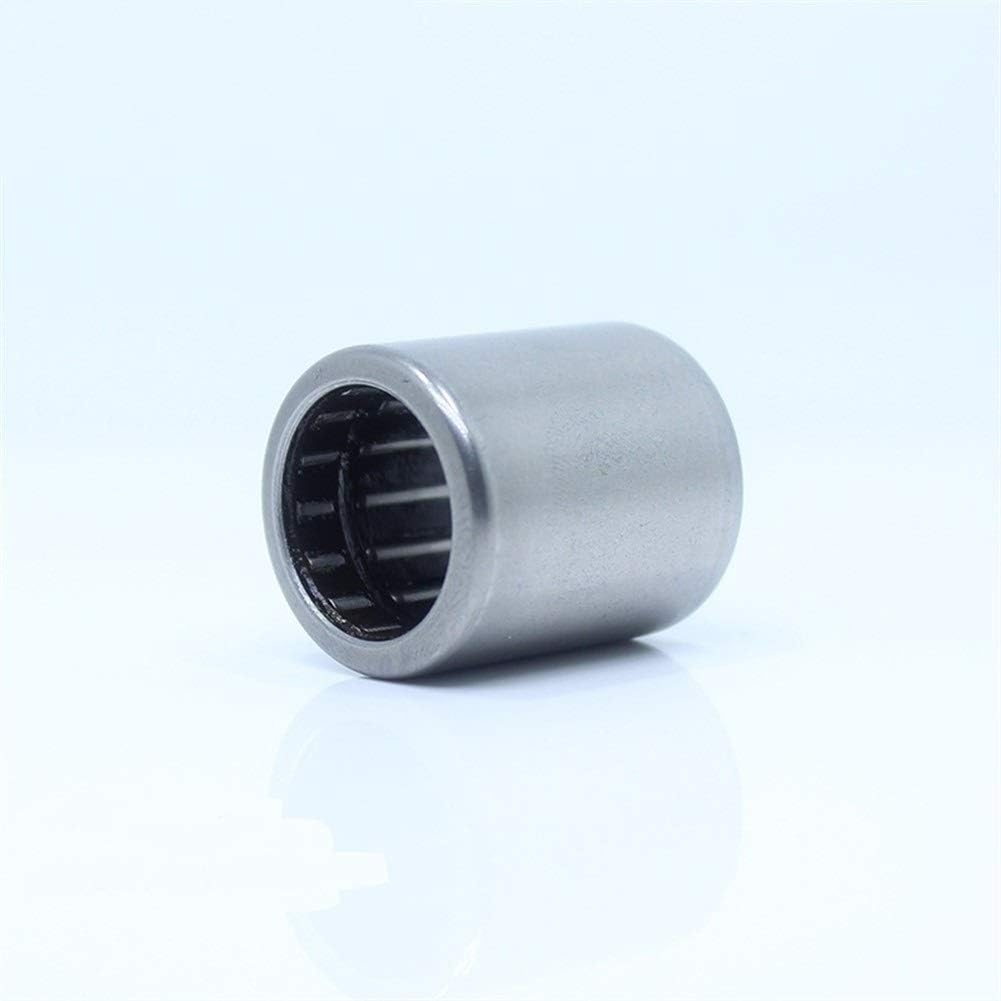

WEIWEIBEIER HFL0822 Needle Roller Bearing Shell Type (5 PCS) HFL-0822 Drawn Cup Needle Roller Clutch Needle Bearing 8 * 12 * 22 mm

DRAWN CUP Roller ClutchesOverview: Drawn cup needle roller clutches are similar to drawn cup needle roller bearings in design; however, they allow free rotation in only one direction while transmitting torque in the opposite direction. These designs use the same small radial section as drawn cup needle roller bearings and are offered as clutch-only units or as clutch and bearing assemblies.Markets: Office equipment, paper-towel dispensers, exercise equipment, appliances and two-speed gearboxes.Features: Compact, lightweight and operate directly on a hardened shaft.Benefits: Installation is easily accomplished with a simple press fit.Drawn Cup Needle Roller Clutch AssemblyThe drawn cup needle roller clutch is the overriding clutch (one-way clutch), composed of the outer ring punched with the high-quality steel sheet, plastic retainer, spring and needles, used for transferring one-way torque.The drawn cup needle roller clutch has not the load carrying feature by itself. However it can play the action in combination with Model HK and BK drawn cup needle roller bearing.The drawn cup needle roller clutch is the block bearing either withstanding the radial load or transferring torque.Model Number: HFL0822Surface Roughness: Ra 0.05Structure: Needle BearingTorque Capacity: 8x12x22Material: 52100 Chrome SteelCoatings: Antirust oil

• Needle Roller Bearing Shell Type HFL-0822 , this is a popular size that could be used in many application that uses this size 8mm x 12mm x 22mm.
• Item: Needle Roller Bearing One Way Shell Type HFL-0822
• Dimensions: 8*12*22 mm/Metric; Size: 8mm x 12mm x 22mm
• ID (inner diameter)/Bore=8mm; OD (outer diameter)=12mm; Width/Height/thickness=22mm
• Type: Needle Roller Bearing; Quantity: 5 Bearings
